Revolver Outdoors

DSR - (Double Side Rail) Fittings 1.25”

DSR - (Double Side Rail) Fittings 1.25”

$215.00 USD
$215.00 USD
Sale Sold out
Shipping calculated at checkout.

The DSR Fitting: The Evolution of the System

The Next Critical Component in the Revolver Outdoors Ecosystem.

The DSR (Double Side Rail) Fitting represents the next phase in high-performance frame architecture. As a vital link in the Revolver Outdoors ecosystem, this component is what makes the transition from a standard build to a highly engineered, professional-grade rig possible. It is designed specifically to facilitate a double side rail configuration using 1.25” pipe, serving the bigger boats with our focus on engineered strength and performance.

Precision Engineering from Bend, Oregon

We didn’t just make a clamp; we sculpted one. Through rigorous structural analysis, we stripped away every unnecessary gram of 6061-T6 aluminum, leaving only the essential geometry required for maximum load bearing. The result is a specialized fitting so refined that it weighs nearly the same as our competitors' standard single-rail clamps.

Component Highlights

  • Cerakote™ Finish: Protected by an industrial-grade ceramic coating for elite durability. Available in two signature colorways:

    • Phantom: A deep, tactical Charcoal Black.

    • Sentinel: A clean, high-visibility Alpine White.

  • Integrated Versatility: The top surface features two 5/16” threaded holes, engineered for the direct and secure fastening of side boards or gear decks.

  • Proprietary Hardware: Every DSR fitting is supplied with two of our custom-designed u-bolts, ensuring a precise, slip-free interface with the rest of your Revolver system.

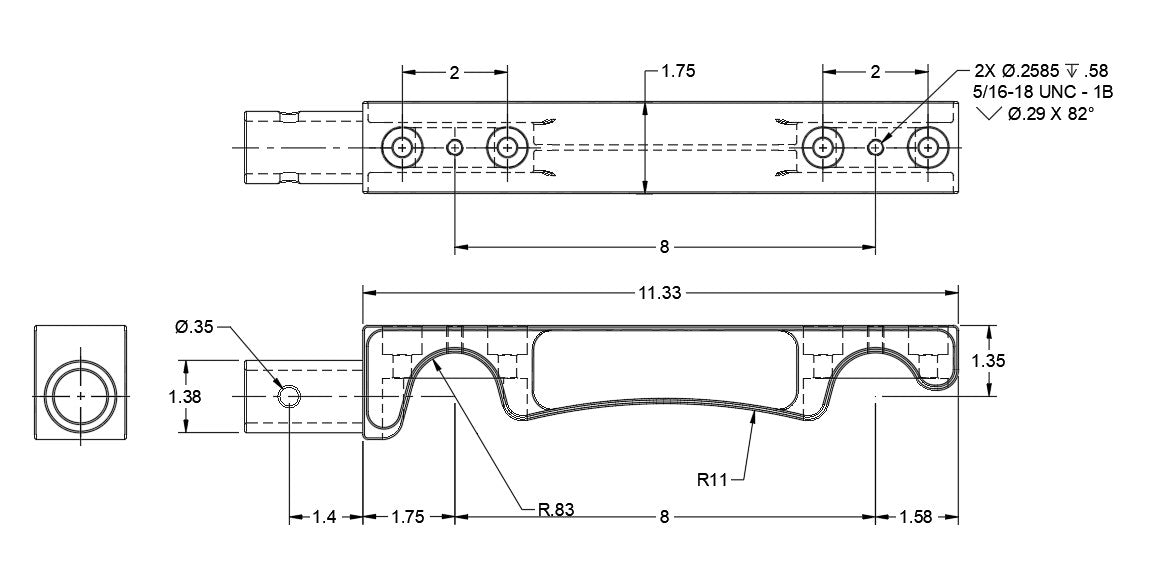

Technical Specifications

Feature Detail
Material Aerospace-grade 6061-T6 Aluminum
Compatibility 1.25" Schedule 40 Pipe (1.66" OD)
Finish Ceramic Cerakote
Origin Machined in-house in Bend, OR
Included Hardware 2x Proprietary U-Bolts



Shipping & Returns

If anything goes wrong with your Spey Sling send it back to us for a full repair or replace.

View full details

Protect Your Entire Quiver

The DDS alone get's you 90% there, but what about Steel Head season, when you need those big rods, fighting butts, two handed rods, and your whole aresenal to land the big one. The Spey Sling add-on is the answer.
